Edge-Blending Projectors vs. Double Stacking

Choose the best solution for your projection mapping project

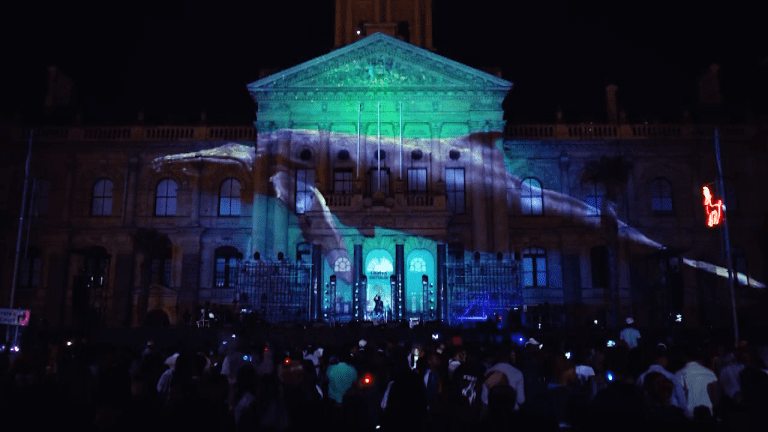

When planning large-scale projection mapping, one fundamental decision shapes everything else: edge blending multiple projectors or stacking them for increased brightness. Both approaches have merit, but after years of fieldwork, I’ve developed strong preferences based on real-world performance rather than theoretical specifications.

My Take: Edge Blending Wins Most Battles

I prefer edge blending over stacking in most situations. The reasons come down to image quality, resolution, and practical reliability during long shows.

Edge blending tolerates movement much better. Projectors shift slightly during events—humidity shifts stacking frames, wind moves rigging, floors settle under equipment weight. With stacked projectors, even tiny misalignments create immediate blur as pixels fall out of perfect registration. I’ve watched crisp images turn muddy within minutes as environmental conditions changed.

Edge blending forgives these micro-movements. Small shifts between adjacent projectors rarely affect the overall image quality noticeably, especially with moving content and architectural imperfections that naturally mask minor inconsistencies.

The Stacking Brightness Myth

Here’s where my experience contradicts common assumptions: doubling projectors doesn’t double perceived brightness. When I run side-by-side tests with identical projectors, turning off the second unit only reduces apparent brightness by about 15% to my eyes.

The physics explains this. Yes, you’re doubling light output, but you’re also doubling the brightness of black areas. Your contrast ratio gets cut in half. In projection mapping, contrast often matters more than raw lumens, especially when competing with ambient light and architectural textures.

Stacking does provide redundancy—lose one projector and you get dimmer rather than black. That security appeals to many people, and I understand the logic. But in practice, I’d rather have the superior image quality of properly edge-blended projectors.

Resolution and Processing Considerations

Edge blending delivers significantly higher resolution. Stack two 4K projectors and you still get 4K output. Tile them with edge blending and you approach 8K, minus the overlap pixels.

This comes at a cost. Tiled content strains the entire video processing chain from graphics cards through media servers to video distribution. You’re pushing more pixels, which means more processing power, more bandwidth, better cabling. Single-output stacked setups run simpler signal chains.

Many clients don’t realize this trade-off. They see “more projectors” and assume linear brightness gains while overlooking the resolution benefits of proper tiling.

Practical Edge Blending Techniques

For projection mapping specifically, I use surprisingly narrow blend zones. Unlike screen applications where edge blends need careful attention, architectural projection forgives rough transitions. Building imperfections, textures, and surface variations naturally disguise blend irregularities.

I often work with 10% overlaps, sometimes even 5%. The pixel savings translate directly to brighter images. On some projects, when building features allow it, I’ll use hard edges entirely. Natural architectural lines—window frames, column edges, material transitions—can delineate projector boundaries perfectly.

Hard edges always beat imperfect blends. If the building gives you natural separation points, use them. Save the pixels, maximize the brightness, skip the blending complications.

Positioning and Lens Strategy

Always zoom projectors as tight as possible first, then handle corrections in software. Clients pay for every pixel and every lumen. Don’t waste them shooting light into empty sky.

Long lenses help with tiling from a far distance, but they can reduce brightness significantly due to lower f-stop values (less light passing through). Some specialty lenses drop output enough to negate the benefits of additional projectors. Test your lens combinations thoroughly.

Don’t be afraid of unconventional projector orientations. Portrait mode, asymmetrical arrangements, irregular shapes—whatever maximizes pixel coverage on your target surface. Modern software handles geometric correction easily. The projector placement should optimize coverage first, aesthetics second.

When Four Projectors Share a Corner

Hot spots happen when multiple blend zones intersect. Four projectors meeting at one point can create brightness peaks that stand out in certain content. I’m usually willing to accept minor hot spots rather than deal with stacking blur, especially with fast-moving content where momentary bright spots disappear quickly.

The Bottom Line

Edge blending requires more technical expertise and processing power, but delivers superior image quality and resolution. Stacking offers simplicity and redundancy but sacrifices contrast and sharpness.

For most large-scale projection mapping projects, I choose edge blending. The visual improvement justifies the additional complexity, and the tolerance for environmental movement makes shows more reliable over time.

Both techniques work. Your choice depends on content requirements, technical capabilities, and how much brightness versus image quality matters for each specific project.
